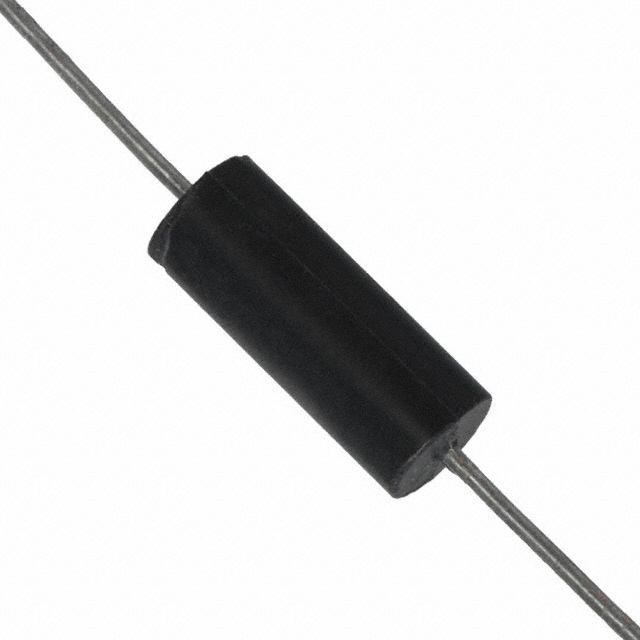

9250-125
FIXED IND 1.2MH 60MA 22.1 OHM TH
9250-125 specifications
Mounting Type：
Through Hole
Operating Temperature：
-55°C ~ 105°C
Shielding：
Shielded
Type：
Drum Core, Wirewound
Material - Core：
Ferrite
Tolerance：
±10%
Package / Case：
Axial
Inductance Frequency - Test：
250 kHz
Inductance：
1.2 mH
Size / Dimension：
0.162" Dia x 0.410" L (4.11mm x 10.41mm)
Frequency - Self Resonant：
1.5MHz
Current - Saturation (Isat)：
35mA
Current Rating (Amps)：
60 mA
Q @ Freq：
45 @ 250kHz
DC Resistance (DCR)：
22.1Ohm Max
