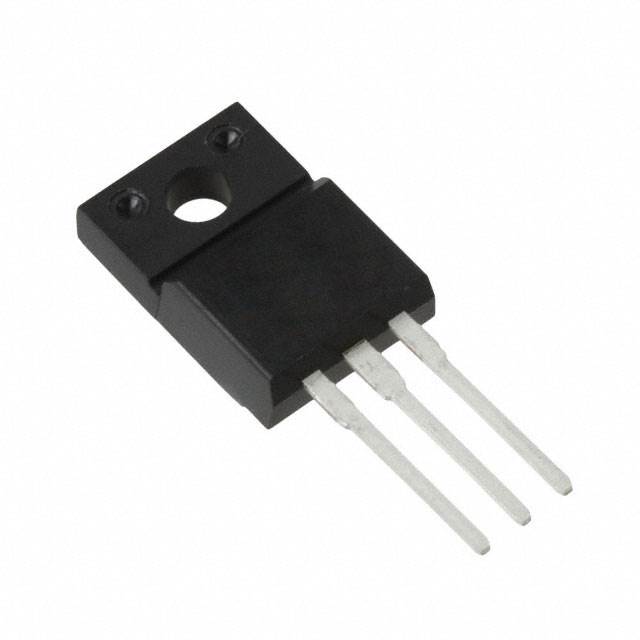

TIG056BF
IGBT 400V 30W TO220
part Number：
TIG056BF
component：
TIG056BF
manufacturer：
Sanyo Semiconductor/onsemi
category：
Discrete Semiconductor Products >
Transistors >
IGBTs >
Single IGBTs >
describe：
IGBT 400V 30W TO220
RoHS：
NO
：
TIG056BF specifications
Mounting Type：
Through Hole
Power - Max：
30 W
Operating Temperature：
150°C (TJ)
Input Type：
Standard
Package / Case：
TO-220-3 Full Pack
Supplier Device Package：
TO-220FI(LS)
Voltage - Collector Emitter Breakdown (Max)：
430 V
Current - Collector Pulsed (Icm)：
240 A
Vce(on) (Max) @ Vge, Ic：
5V @ 15V, 240A
Td (on/off) @ 25°C：
46ns/140ns
Test Condition：
320V, 240A, 10Ohm, 15V
