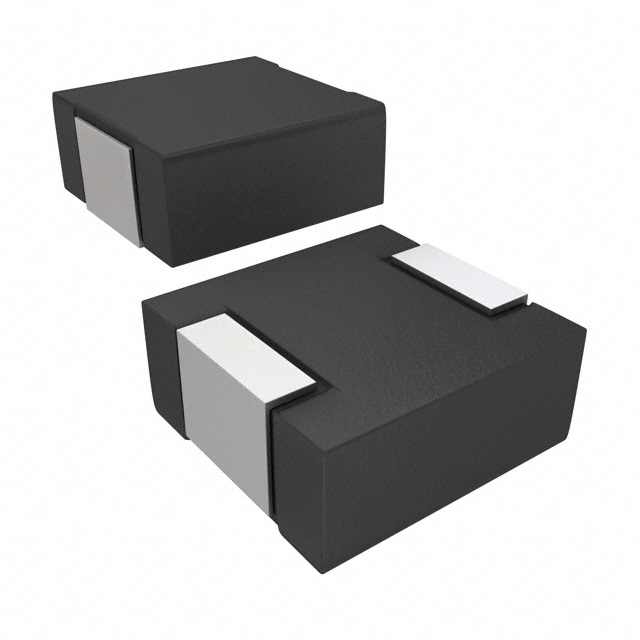

IHLP2525CZER220M51
FIXED IND 22UH 2.8A 174 MOHM SMD
part Number：
IHLP2525CZER220M51
Alternative Model：
LT1933ES6#TRMPBF,LT1933IS6#TRMPBF,LT1613CS5#TRMPBF,LT1933ES6#TRPBF,LT1613CS5#TRPBF,LT1933HDCB#TRMPBF,LT1933IDCB#TRMPBF,ADP2311ACPZ-1-R7,LM22675MRE-ADJ/NOPB,LT1933HS6#TRMPBF,LT1933IS6#TRPBF,TPS54140DGQR
manufacturer：
Vishay / Dale
category：
Inductors, Coils, Chokes >
Fixed Inductors >
describe：
FIXED IND 22UH 2.8A 174 MOHM SMD
RoHS：
YES
IHLP2525CZER220M51 specifications
Mounting Type：
Surface Mount
Height - Seated (Max)：
0.118" (3.00mm)
Shielding：
Shielded
Operating Temperature：
-55°C ~ 125°C
Type：
Molded
Tolerance：
±20%
Inductance Frequency - Test：
100 kHz
Inductance：
22 µH
Package / Case：
Nonstandard
Current - Saturation (Isat)：
2.2A
Current Rating (Amps)：
2.8 A
Size / Dimension：
0.270" L x 0.255" W (6.86mm x 6.47mm)
DC Resistance (DCR)：
174mOhm Max
Frequency - Self Resonant：
8.3MHz
